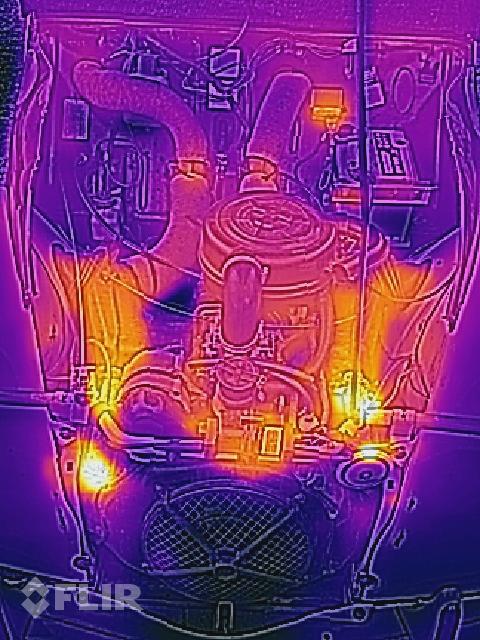

Playing around with an infra-red camera and took a couple of pictures of Judith’s engine when it was running. The effect of the cooling ducts moving the heat away from the cylinder headers is clear.

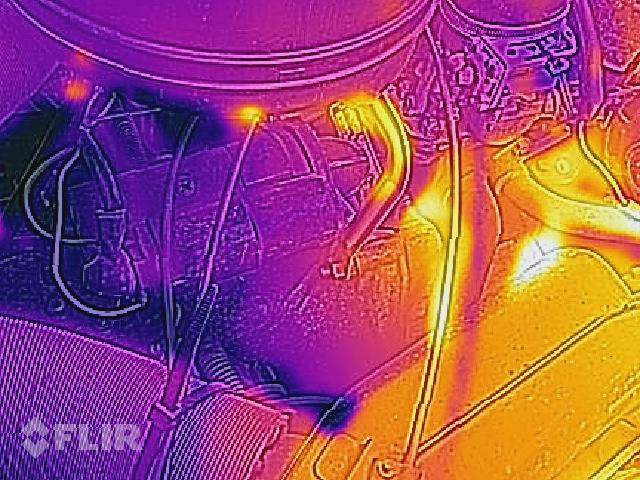

From underneath the sump, which is part of the engine block, is the main heat source.
