2CV dim-dip wiring loom removal

22nd March 2017 22:03

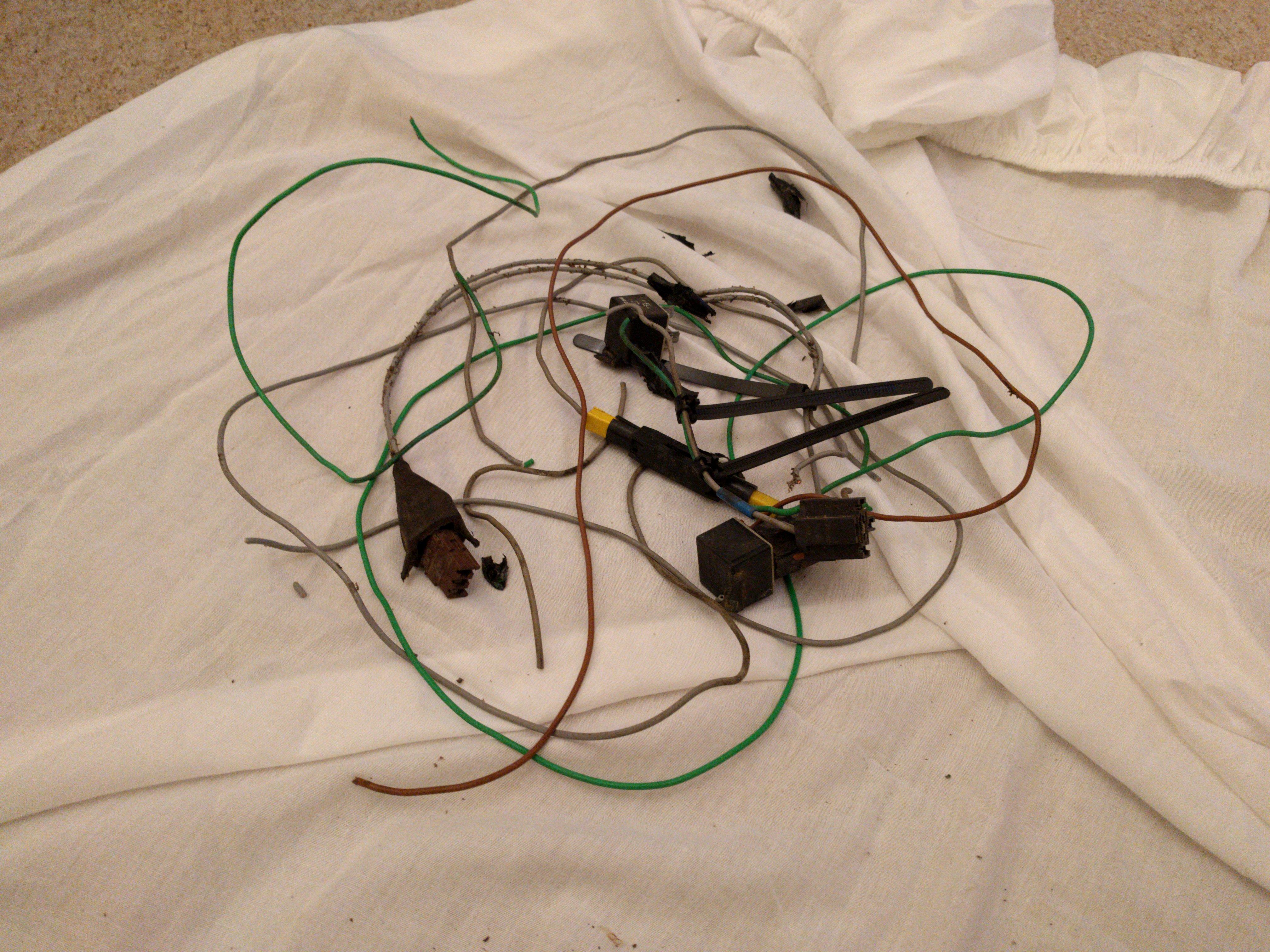

As the wiring loom I’m working with was from a car that came with the dim-dip system I removed it entirely – including all the extra wires added to the loom.

Most of these wires were added to the loom at crimp connectors so cutting them out cleanly was easy.

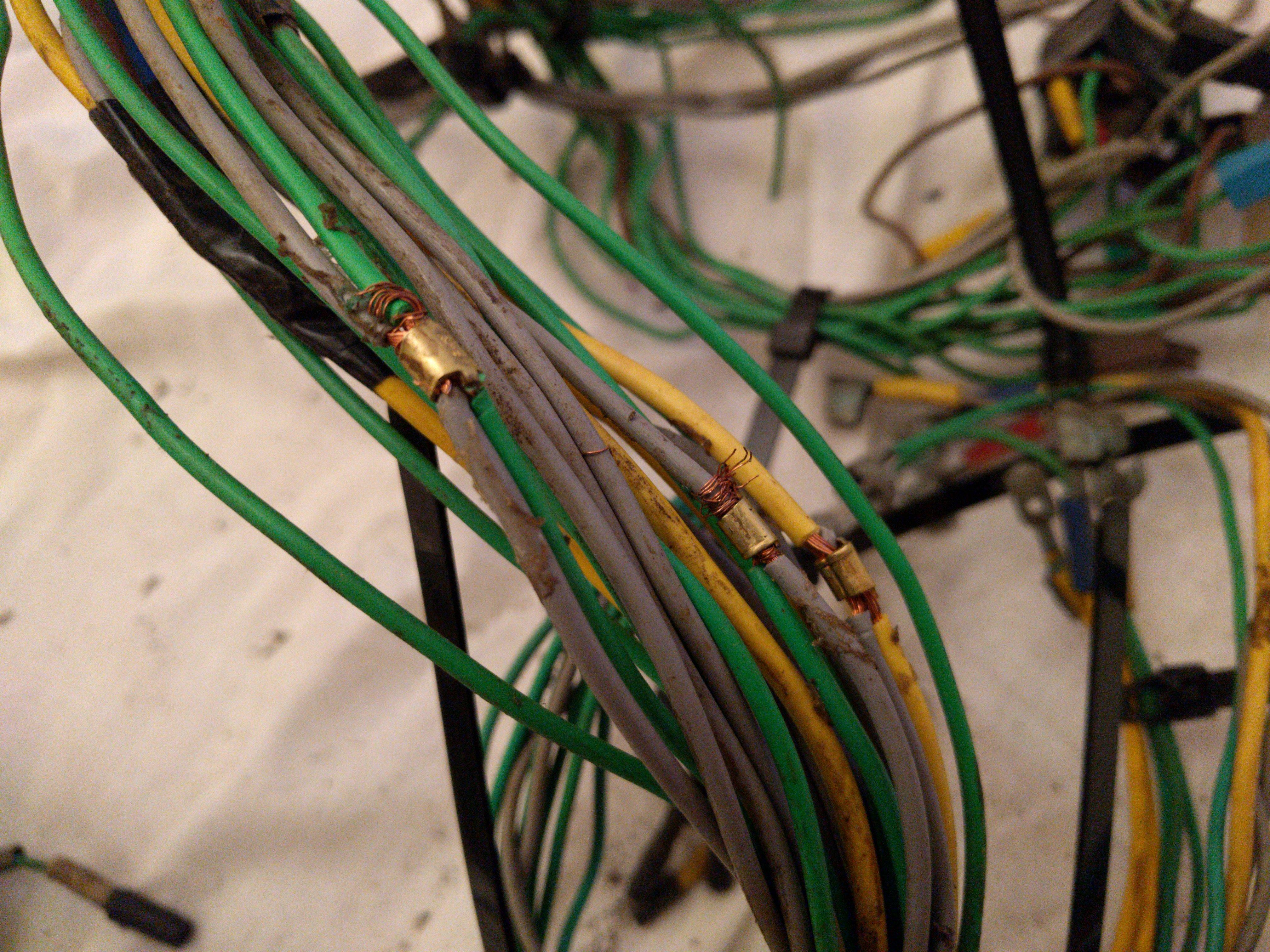

Connectors in a 2C wiring loom

The relay one bypass was also easy to do neatly with an insulated crimp connector.

Dim-dip relay by-pass in a 2CV wiring loom

Posted on 22nd March 201725th March 2017
Posted in Automotive
Tagged 2CV, 2CV wiring loom, Burton
